Bamboo, Shade & Sustainability: A Climate-Responsive Experiment on the Organo Office Terrace

Author: Prajwala G | Sustainability Architect
Data logged: Eshwar Reddy |  Jr Civil Engineer

In pursuit of resilient and climate-conscious design strategies, Organo Eco Habitats continues to explore vernacular materials and simple, low-carbon interventions that respond to real-world challenges. One such initiative recently unfolded on our office terrace—a modest, open-sided bamboo pavilion with a woven bamboo roof, constructed to test the efficacy of temporary natural shading solutions versus permanent architectural fixtures like RCC or steel gazebos.

This intervention serves both as a comfortable lunch area for team members and a real-time environmental lab, where empirical data is used to evaluate the actual performance of traditional materials in extreme summer conditions. The results have implications that stretch beyond our own built environment into the broader realm of sustainable urban and landscape design.

Experimental Setup: Design and Data Collection

The structure—a 16ft by 30ft bamboo frame topped with woven bamboo panels—was designed to be breathable, low-cost, and easily replaceable. From April 15th to 18th, 2025, the shaded and unshaded zones of the terrace were monitored using an infrared (IR) thermal imaging camera and digital temperature/humidity sensors. Hourly measurements were recorded from 11:00 AM to 5:00 PM, covering:

• Surface temperature (IR-based) for both shaded and unshaded areas.


• Ambient temperature in shaded and unshaded areas.


• Comparative indoor vs. outdoor ambient temperature to understand overall heat stress.



Thermal Performance: Surface and Ambient Temperature Differentials

Data analysis shows clear and consistent temperature moderation under the bamboo structure compared to exposed concrete areas. Below is a summary of key findings from the study:

• Maximum Surface Temperature:



  • Unshaded concrete reached a peak of 59.2°C.


  • The shaded bamboo structure remained around 34–36°C.


  • This results in a surface temperature reduction of over 20°C during peak hours.


• Ambient Temperature Comparison:



  • Outdoor unshaded zones were consistently 3–6°C hotter than shaded zones.


  • Indoor spaces adjacent to the terrace often had lower temperatures than exposed areas, indicating that shaded areas can also contribute to passive cooling inside buildings.

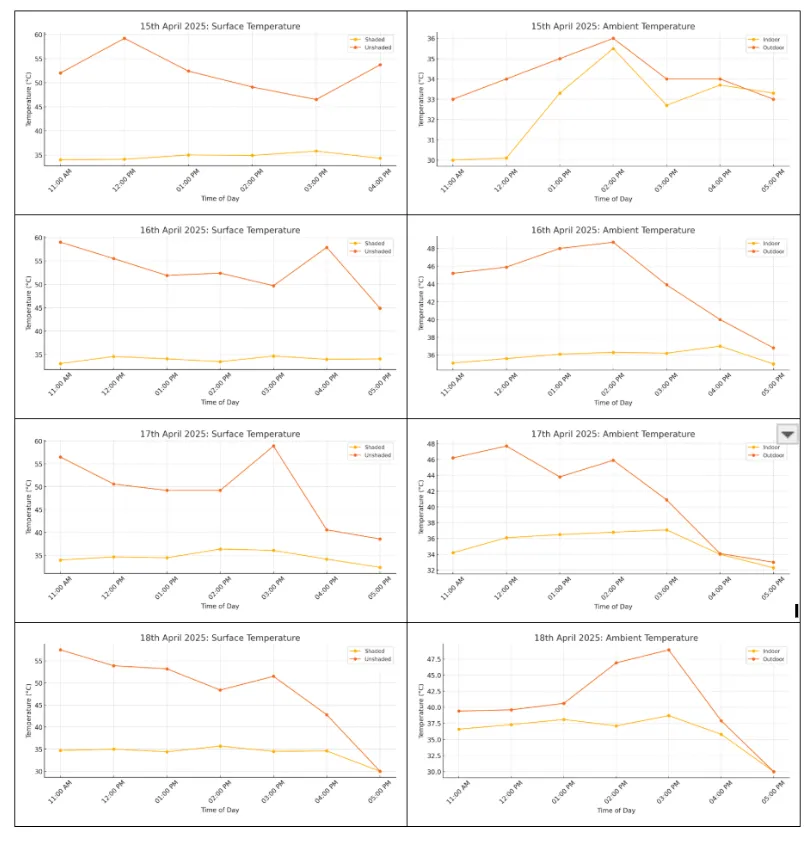

• Day-Wise Surface Temperature Averages (Shaded vs. Unshaded):



  • April 15: 34.8°C vs. 52.3°C


  • April 16: 34.4°C vs. 53.0°C


  • April 17: 34.6°C vs. 49.0°C


  • April 18: 34.8°C vs. 50.9°C

These findings substantiate that the breathable design of bamboo and woven panels not only provides shade but also enables convective heat dissipation, reducing heat gain significantly without relying on mechanical systems.

Comparative Analysis: Temporary vs. Permanent Structures

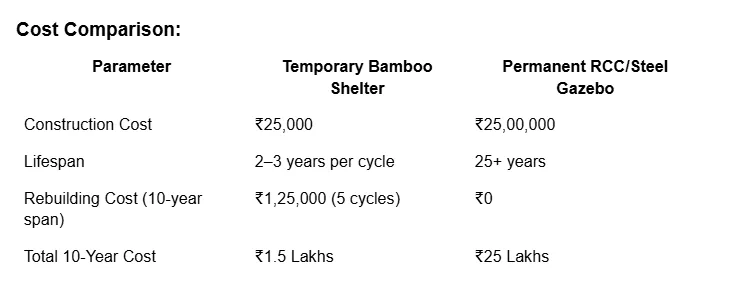

Despite requiring periodic reconstruction, the total lifecycle cost of the bamboo structure is less than 6% of the capital expenditure required for a permanent RCC or steel structure. Given the added thermal performance, this represents an extraordinary return on both financial and environmental investment.

Environmental Impact:

• Embodied Carbon: Bamboo has near-zero embodied carbon compared to RCC and steel.


• Heat Island Mitigation: The bamboo structure enhances permeability and avoids contributing to localized heat island effects.


• End-of-Life Impact: The natural materials used are biodegradable and do not burden landfills.



Design Implications and Broader Impact

The outcomes of this experiment suggest that temporary, renewable, and modular shade structures are not just substitutes for permanent gazebos—they are often superior solutions in hot-humid and semi-arid climates, particularly when ecological and financial constraints are considered.

These findings advocate for rethinking conventional approaches to semi-open spaces in schools, community parks, courtyard homes, and institutional campuses. The lightweight nature of such structures also makes them ideal for seasonal installations or event-driven landscapes, where mobility and reusability are essential.

Final Insight: Enhancing Comfort with Minimal Interventions

While the passive bamboo structure performed remarkably well, comfort levels can be further enhanced through simple mechanical augmentations that do not compromise sustainability. For instance:

• Evaporative cooling: Use of water-cooled fans or misting systems during extreme afternoons.


• Modular side shading: Adjustable woven bamboo screens or hanging plants that block low-angle sun.


• Thermal mass moderation: Clay pots or porous flooring that absorb and slowly release heat.



These interventions can be added without disturbing the ecological footprint or architectural simplicity of the structure.

Conclusion: Toward a Climate-Conscious Landscape Language

This study reinforces that climate-responsive design need not be high-tech or high-cost. Traditional knowledge systems and natural materials—when combined with data-driven evaluation—offer a pragmatic, accessible path forward in addressing heat stress, budget constraints, and ecological concerns in outdoor built environments.

For architects, developers, and policymakers, the question is not whether we can afford such temporary shading structures—but whether we can afford to ignore them.

‍
