Optimizing Building Envelopes for Organo Homes

By
June 22, 2024

Author: Meena Murugappan, Director (Product Strategy & Innovation)

Co-Author: Prajwala Gaddalay, Assistant Manager (Sustainability)

As an architect+developer designing homes & eco-communities in Hyderabad, focusing on the building envelope to enhance sustainability and reduce the carbon footprint is an important approach.

The home envelope, or building envelope, refers to the physical barrier between the interior and exterior of a building, encompassing walls, roofs, windows, doors, and floors. Its design is crucial for several reasons as listed below:

1. Energy Efficiency

  • Insulation: A well-designed envelope minimizes heat loss in winter and heat gain in summer, reducing the need for artificial heating and cooling.
  • Air Sealing: Proper sealing prevents drafts and air leaks, enhancing the overall energy efficiency of the home.

2. Comfort

  • Thermal Comfort: Effective insulation and air sealing create a stable indoor temperature, making the living environment more comfortable.
  • Acoustic Comfort: High-quality materials and proper construction techniques can reduce noise pollution from outside.

3. Indoor Air Quality

  • Moisture Control: Proper design prevents moisture ingress, which can lead to mold growth and poor indoor air quality.
  • Ventilation: Adequate ventilation is necessary to remove indoor pollutants and provide fresh air.

4. Durability

  • Structural Integrity: A well-designed envelope protects the building from weather elements, prolonging its lifespan.

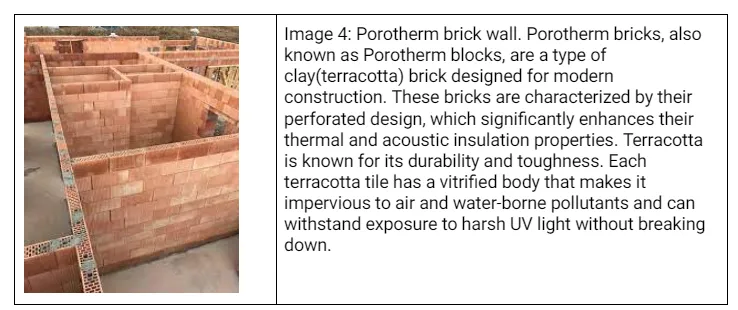

  • Material Selection: Choosing durable, weather-resistant materials can reduce maintenance costs and enhance longevity, example terracotta image 3

5. Sustainability

  • Resource Efficiency: Using sustainable materials and construction practices reduces the environmental impact.
  • Energy Conservation: A highly efficient envelope contributes to lower energy consumption, reducing the carbon footprint of the building.

6. Aesthetics and Property Value

  • Curb Appeal: The exterior appearance of the building impacts its aesthetic appeal and market value.
  • Marketability: Energy-efficient homes with high-performance envelopes are often more attractive to buyers and can command higher prices.

7. Regulatory Compliance

  • Building Codes: Meeting or exceeding building codes and standards ensures compliance with regulations and can avoid legal issues.
  • Energy Ratings: High-performance envelopes contribute to better energy ratings (e.g., LEED, ENERGY STAR), which can be beneficial for property valuation and incentives.

Key Components of a Home Envelope:

  1. Walls:
    • Insulation types (e.g., fiberglass, foam, cellulose).
    • Air barriers and vapor barriers.

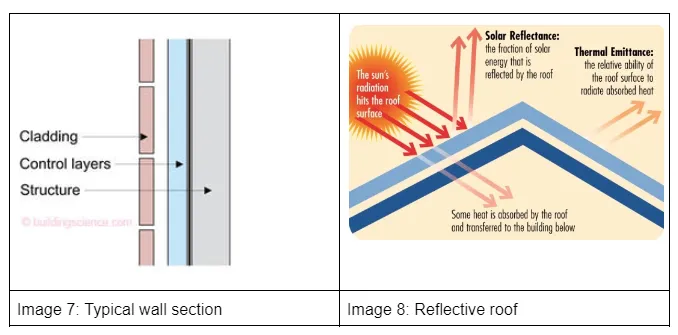

    • Exterior cladding materials.

  1. Roof:
    • Roof insulation.
    • Reflective roofing materials.
    • Proper attic ventilation.
  2. Windows and Doors:some text
    • Double or triple glazing.
    • Low-emissivity (Low-E) coatings.
    • Weatherstripping and proper sealing.
  3. Foundation and Floors:some text
    • Basement and crawl space insulation.
    • Moisture barriers.
    • Proper drainage systems.

Enhancing the Building Envelope for a Retreat Home at Organo Eco Habitats

In our designs for homes and neighborhoods, we implement several strategies that are tailored to our residents' requirements:

1. Site Analysis and Orientation

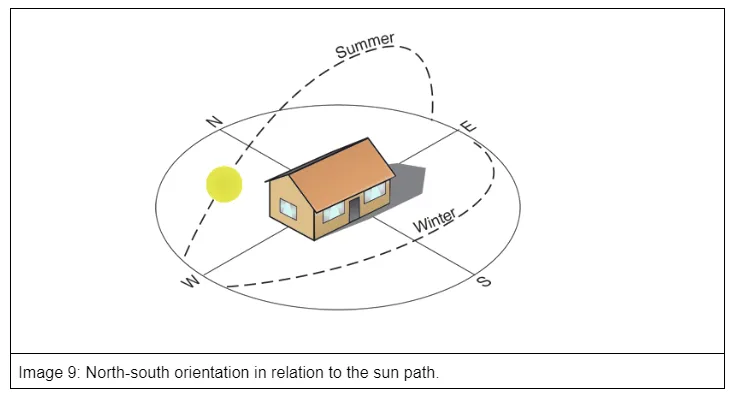

  • Solar Orientation: We position the building to minimize direct exposure to the hot afternoon sun. North-south orientation is preferable to reduce solar gain. However, as Vaastu is a key design input, we work on E-W orientation as well, but use passive house design principles to improve the building performance and user comfort.
  • Natural Features: We also actively utilize existing trees and create new landscape features for shading and wind buffering.

 2. Foundation and Flooring

  • Insulated Slab Foundation: Use insulated concrete forms (ICFs) for the foundation to reduce heat transfer from the ground.
  • Thermal Mass Flooring: Consider materials like polished concrete or stone with high thermal mass that can absorb and gradually release heat, helping to stabilize indoor temperatures.

3. Wall Systems

  • High-Performance Insulation: Use materials like aerated autoclaved concrete (AAC) blocks or insulated concrete forms (ICFs) for walls. These materials provide good thermal insulation and are eco-friendly.
  • Exterior Cladding: Incorporate ventilated facades or rain screens that allow air to circulate between the cladding and the wall, reducing heat buildup.
  • Natural Materials: Use locally sourced, sustainable materials like bamboo or reclaimed wood to reduce the carbon footprint.

4. Roofing

Cool Roof Technologies: Apply reflective coatings or use light-colored roofing materials to reflect solar radiation.

Green Roof: Incorporate a green roof with vegetation to provide insulation, reduce stormwater runoff, and improve air quality.

Roof Overhangs: Design generous overhangs to protect walls and windows from direct sunlight and rain.

5. Windows and Glazing

Energy-Efficient Windows: Install double or triple-glazed windows with low-emissivity (Low-E) coatings to reduce heat gain while maintaining natural light.

Operable Windows: Design windows that can be opened to allow for natural ventilation, particularly in the cooler evenings and mornings.

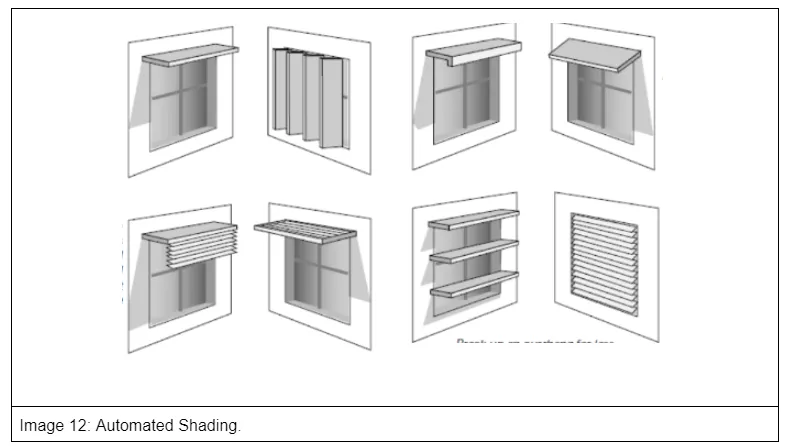

Shading Devices: Use external shading devices like louvers, shutters, or pergolas to control solar gain.

6. Insulation

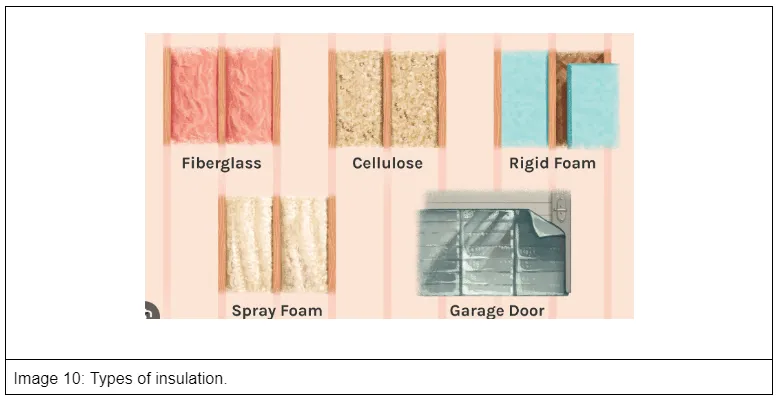

Roof and Wall Insulation: Use high-R-value insulation materials in the roof and walls. Options include spray foam insulation, mineral wool, or rigid foam boards.

Floor Insulation: Insulate the floor slab to prevent heat loss/gain from the ground.

7. Ventilation and Airflow

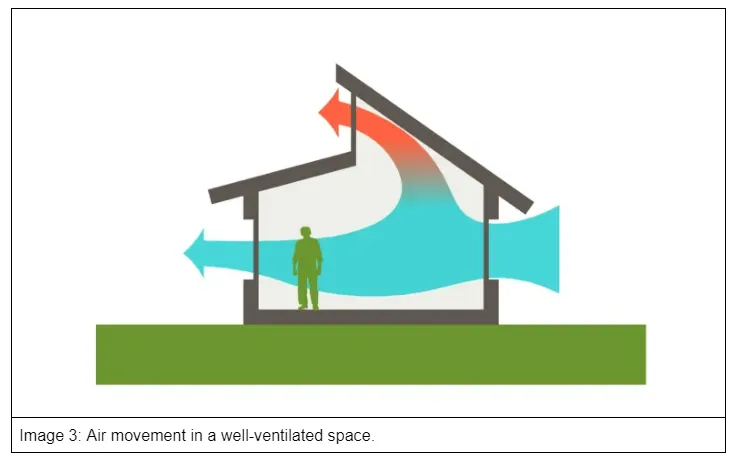

Cross Ventilation: Design the layout to facilitate cross ventilation, enhancing natural cooling.

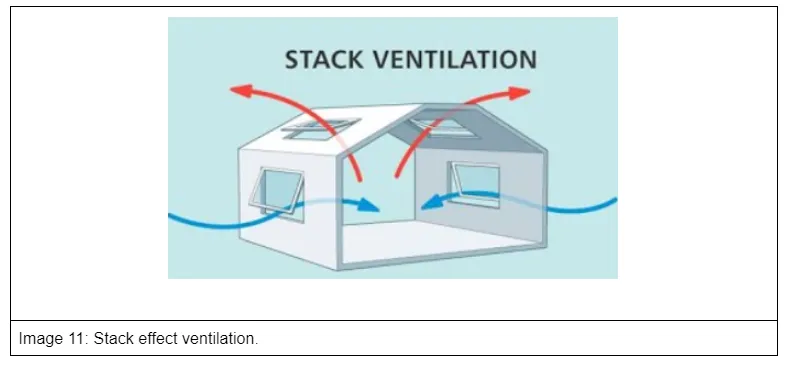

Stack Effect: Utilize the stack effect by designing vertical spaces like atriums or double-height rooms that allow hot air to rise and exit, drawing in cooler air.

8. Sustainable Technologies

Solar Panels: Install photovoltaic panels to generate renewable energy, reducing reliance on the grid.

Rainwater Harvesting: Implement rainwater harvesting systems to collect and store rainwater for irrigation and other non-potable uses.

Greywater Systems: Use greywater recycling systems to reuse water from sinks and showers for landscaping.

9. Landscaping

Native Plants: Use native and drought-resistant plants to reduce water usage and support local biodiversity.

Green Barriers: Plant trees and shrubs strategically to act as windbreaks and provide natural cooling through evapotranspiration.

10. Smart Home Technologies

Energy Management Systems: Integrate smart energy management systems to monitor and optimize energy usage.

Automated Shading: Use automated shading systems that adjust based on the time of day and weather conditions to optimize natural light and reduce heat gain(image11).

Implementation Plan

1. Design Phase

  • Conduct a thorough site analysis to understand solar paths, prevailing winds, and natural features.
  • Collaborate with structural engineers, sustainability consultants, and landscape architects to integrate these features seamlessly.

2. Material Selection

  • Choose locally available, sustainable materials to reduce transportation emissions.
  • Source materials with environmental certifications (e.g., FSC-certified wood, low-VOC paints).

3. Construction Phase

  • Implement waste reduction strategies on-site, such as recycling construction debris and using modular construction techniques to minimize waste.
  • Ensure proper installation of insulation and sealing to prevent air leaks and thermal bridging.

4. Post-Construction

  • Educate the homeowners on the operation of sustainable features and systems to ensure optimal performance.
  • Provide a maintenance plan for eco-friendly technologies like solar panels and green roofs.

Conclusion

By focusing on a well-designed building envelope using sustainable materials and technologies, you can create a retreat home that is comfortable, energy-efficient, and environmentally responsible. This approach not only reduces the carbon footprint but also enhances the health and well-being of the occupants, aligning with your commitment to designing homes that benefit both people and the planet.

Citations:

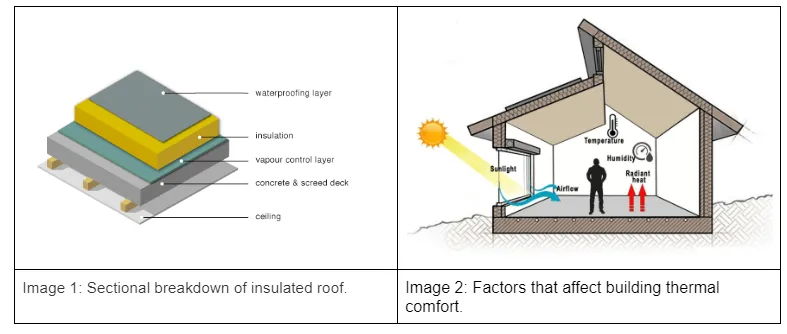

Image 1: Housing retrofit: Concrete Flat Roof Insulation. Greenspec. (n.d.).

https://www.greenspec.co.uk/building-design/concrete-flat-roof-insulation/

Image 2: Factors that influence residential building thermal comfort | download scientific diagram. (n.d.-b).
https://www.researchgate.net/figure/Factors-that-influence-residential-building-thermal-comfort_fig1_356656452

Image 3: Holder, H. (2024, April 2). 8 passive ventilation strategies for your tropical home. Architropics.
https://architropics.com/passive-ventilation-strategies-for-your-home/

Image 4: Porotherm bricks.
https://www.wienerberger.in/products/wall/porotherm-smart-bricks.html

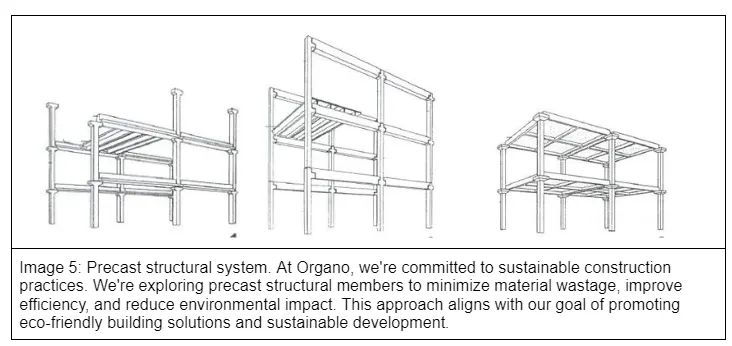

Image 5: Variations in skeletal frame systems | download scientific diagram. (n.d.-c).
